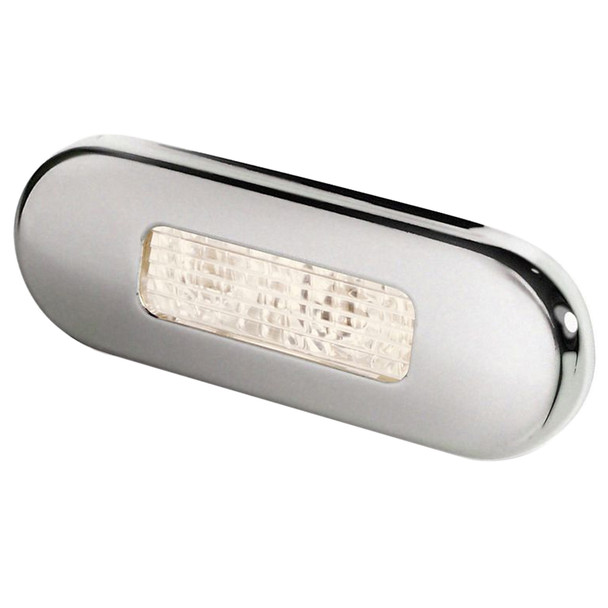

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Warm White with Stainless Steel Bezel

Surface Mount Oblong LED Courtesy Lamp - Warm White LED - Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30 safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

• Lens Material: UV and enhanced impact resistant Grilamid


• Rim Material: 316 stainless steel


• Cable: Pre-wired with 120mm of marine cable


• Operating Voltage: Multivolt 12 / 24V DC


• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )


• Degree of Protection: IP 67 - Completely Sealed


• Mounting: Stainless steel screws included


• Weight: 35g (including cable)


• Approvals: CE

The Hella Marine Surface Mount Oblong LED Courtesy Lamp with Warm White LED offers reliable illumination for both interior and exterior marine applications. Designed with durability and versatility in mind, this lamp features a polished 316 stainless steel bezel that resists corrosion and enhances the vessel's aesthetic. It is suitable for use in wet or dry environments, making it an ideal choice for boat owners seeking long-lasting courtesy lighting.

Equipped with engineered optics, the lamp provides a downward light spread that safely illuminates deck areas and steps without glare or eye discomfort. Its UV and impact-resistant Grilamid lens ensures durability in harsh marine conditions. The lamp is pre-wired with 120mm marine cable and includes stainless steel mounting screws, simplifying installation and ensuring a secure fit. Its compact weight of approximately 1.7 ounces makes it a lightweight but sturdy addition to your vessel.

Operating on 12 or 24 volts DC, this LED courtesy lamp consumes just 0.5 watts, making it energy-efficient for extended use. It boasts an IP 67 rating, signifying complete sealing against dust and water ingress, which is critical for marine environments. Certified by CE, this lamp meets rigorous safety and quality standards, offering peace of mind for boat owners and operators seeking dependable lighting solutions for their vessels.

Features:

• Marine-grade stainless steel bezel provides corrosion resistance and aesthetic appeal

• UV and impact-resistant Grilamid lens enhances durability in harsh conditions

• Pre-wired with 120mm marine cable for easy installation

• Operates on multivolt 12/24V DC power supply with low power consumption

• IP67 rated for complete sealing against dust and water ingress

• Engineered optics direct light downward for safe deck and step illumination

• Includes stainless steel mounting screws for secure installation

• Lightweight design weighing approximately 1.7 ounces (including cable)

• CE approved for quality and safety assurance
