Description

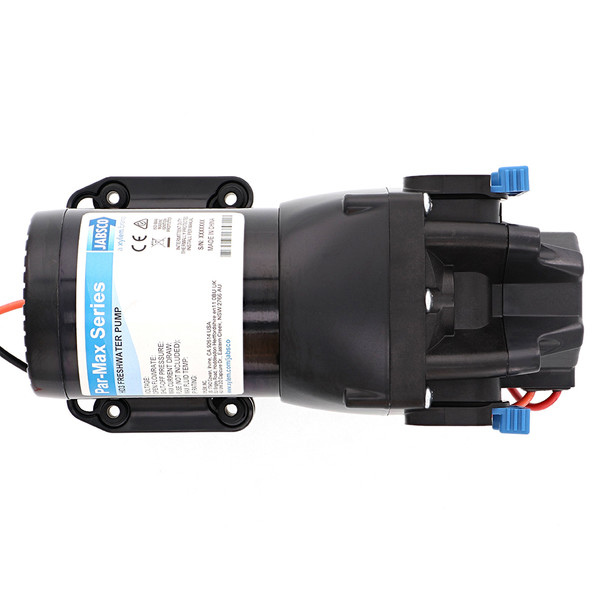

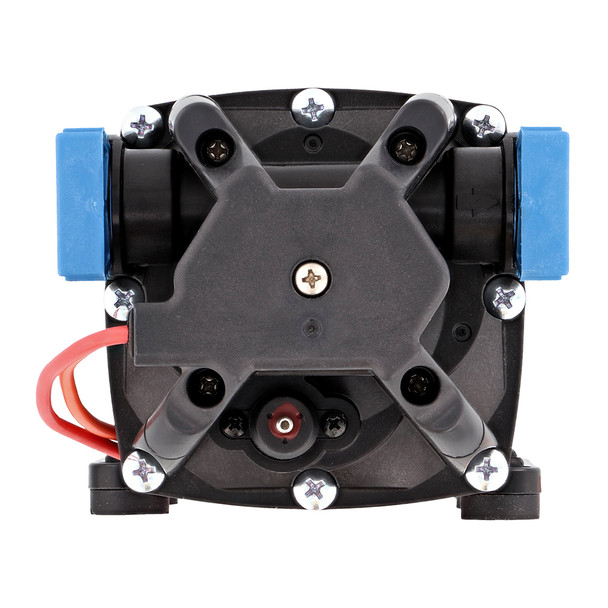

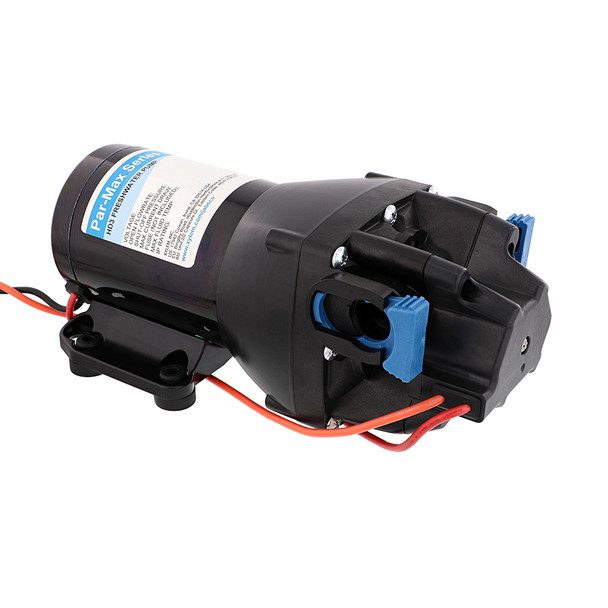

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32F 140F (0C 60C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump is designed for demanding applications where reliable water flow is essential. Powered by a robust 12V brushed, permanent magnet TENV motor, this pump delivers a flow rate of 3 gallons per minute at a pressure of 40 PSI, making it suitable for various marine, RV, and industrial uses. The HD (Heavy Duty) model features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing, which collectively enhance its pressure capability and service life. Its durable construction ensures long-lasting performance even under high-pressure conditions, providing a dependable water supply solution.
The pump incorporates advanced features such as co-molded TPV diaphragms for extended durability, an integrated sealed pressure switch for on-demand operation, and an internal bypass module that helps reduce cycling and promotes smoother flow. Its self-priming capability of up to 7 feet allows for flexible installation options, including vertical and horizontal orientations. The pump is designed to run dry without damage, ensuring safety and reliability during operation. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet minimize noise and vibration during use.
Constructed with a glass fiber reinforced polypropylene pump head and EPDM check valves, the Jabsco Par-Max HD3 is engineered for corrosion resistance and longevity. It is certified with CE, ISO8846, and RCM standards and features an ingress protection rating of IPX6, making it suitable for challenging environments. Whether you're outfitting a boat, RV, or industrial system, this pump provides efficient, quiet, and maintenance-friendly water delivery to meet your needs.
Features:
- Co-molded diaphragm technology for long life and durability
- Heavy duty motor and cast aluminum lower housing for high pressure performance
- Efficient and quiet operation
- Integrated sealed pressure switch for on-demand water flow
- Self-priming capability up to 7 feet for flexible installation
- Can operate dry without damage
- Quick connect ports for easy installation and maintenance
- Vibration dampening mounting feet reduce noise
- Integrated bypass module to reduce cycling and ensure smooth flow
