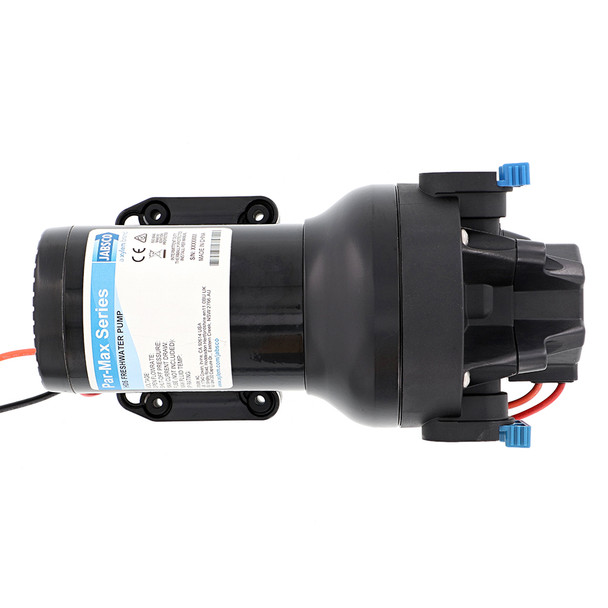

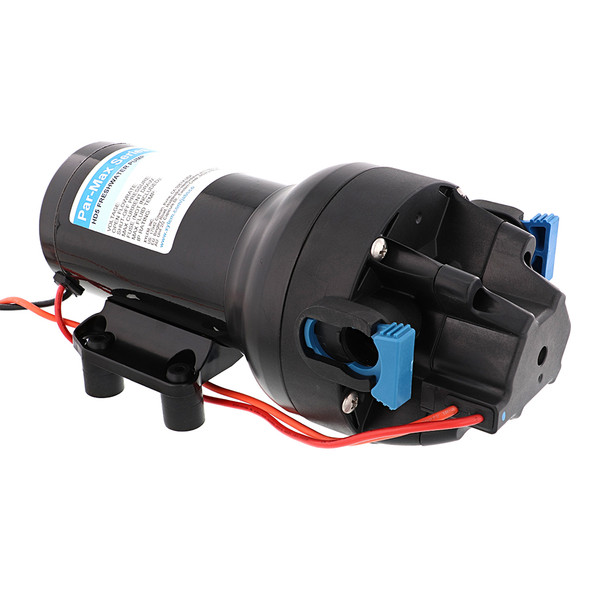

Jabsco Par-Max HD5 12V Heavy Duty Water Pressure Pump – 5 GPM, 60 PSI

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 is a durable 12-volt water pressure pump designed for heavy-duty applications. Featuring a wider diameter motor with a powder-coated shell and cast aluminum endbells and lower housing, this pump offers enhanced pressure capability and extended lifespan. It delivers up to 5 gallons per minute at 60 PSI, making it suitable for demanding water transfer needs on boats, RVs, and industrial settings. The HD models are equipped with heavy-duty components, ensuring long-term performance even under high-pressure conditions. Its efficient operation generates minimal noise, and the integrated sealed pressure switch allows for on-demand activation, contributing to energy efficiency and system longevity.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for high-pressure resilience

• Efficient and quiet operation for reduced noise levels

• Integrated, sealed pressure switch for on-demand water delivery

• Self-priming design enables versatile installation options

• Can operate dry without damage, reducing the need for constant monitoring

• Quick connect ports facilitate easy installation, servicing, and maintenance

• Vibration dampening mounting feet for reduced vibration transfer

• Built-in bypass module to minimize cycling and ensure smoother flow
