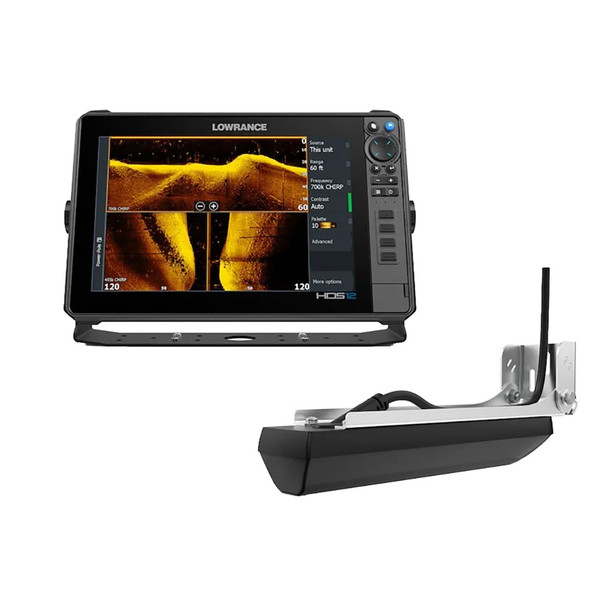

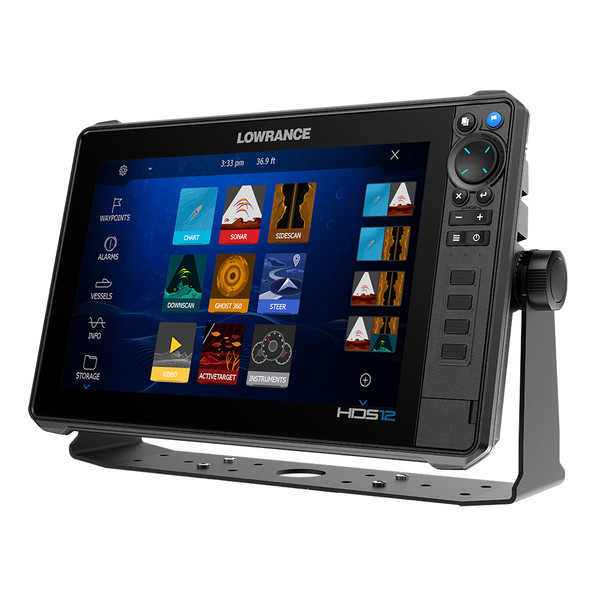

Lowrance HDS PRO 12 Fishfinder and Chartplotter with Preloaded C-MAP DISCOVER and Active Imaging HD Transducer

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (12-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure


• Lowrance CHIRP with superb clarity and target separation


• FishReveal DownScan view makes fish identification easy


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies


• Smart transducer design boosts signal clarity


• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 800


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on


• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on


• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on


• Recommended Fuse Rating: 5A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

The Lowrance HDS PRO 12 offers a comprehensive marine navigation and fishfinding solution designed for serious anglers and boaters. Featuring a 12-inch high-definition touchscreen with solarMAX technology, the device provides clear visibility at extreme angles and through polarized lenses, ensuring optimal viewing in all conditions. Equipped with preloaded C-MAP DISCOVER charts covering over 19,000 US lakes and 9,400 Canadian lakes with 1-foot contours, it enables boaters to quickly locate prime fishing spots and navigate with confidence. The device's robust networking capabilities include Ethernet, WiFi, Bluetooth, and NMEA 2000 support, facilitating seamless integration with other marine electronics for a fully connected experience. Touch controls allow easy operation of Power-Pole anchors, Ghost Trolling Motor, autopilot, and outboard systems, streamlining onboard management. The inclusion of up to 8GB of internal storage, as well as support for micro SD cards up to 32GB, allows users to save waypoints, routes, and detailed maps for future reference. The system's real-time mapping with C-MAP Genesis Live further enhances navigation precision. The HDS PRO 12 is powered by Lowrance’s Active Imaging HD transducer, which delivers ultra-high-definition SideScan, DownScan, and ActiveTarget 2 Live Sonar support, providing clear images of fish and underwater structures. FishReveal technology simplifies fish identification by combining DownScan and traditional sonar, while the device's compatibility with ActiveTarget Scout and Ghost Trolling Motor offers advanced chart overlay views for improved fishing accuracy. Designed for durability and reliability, it operates effectively across a wide temperature range and includes a user-friendly interface with large programmable keys and comprehensive connectivity options, making it a versatile addition to any boat's electronics suite.

Features:

• Preloaded C-MAP DISCOVER charts with detailed contours for over 19,000 US lakes and 9,400 Canadian lakes

• 12-inch high-definition SolarMAX touchscreen with extreme angle viewability

• Active Imaging HD transducer supports SideScan, DownScan, and ActiveTarget 2 Live Sonar for ultra-clear imaging

• Supports Lowrance CHIRP, SideScan, DownScan, and FishReveal technologies for easy fish and structure identification

• Built-in WiFi, Bluetooth 4.0, and Ethernet ports facilitate full system networking and wireless connectivity

• Supports real-time mapping with C-MAP Genesis Live and detailed cartography options

• Large internal storage (8GB) with micro SD card support for extensive data management

• Compatibility with Power-Pole, Ghost Trolling Motor, Autopilot, and Outboard Pilot for integrated boat control

• User-friendly interface with large programmable keys and touchscreen controls

• Operates within a wide temperature range, ensuring durability in diverse marine environments
