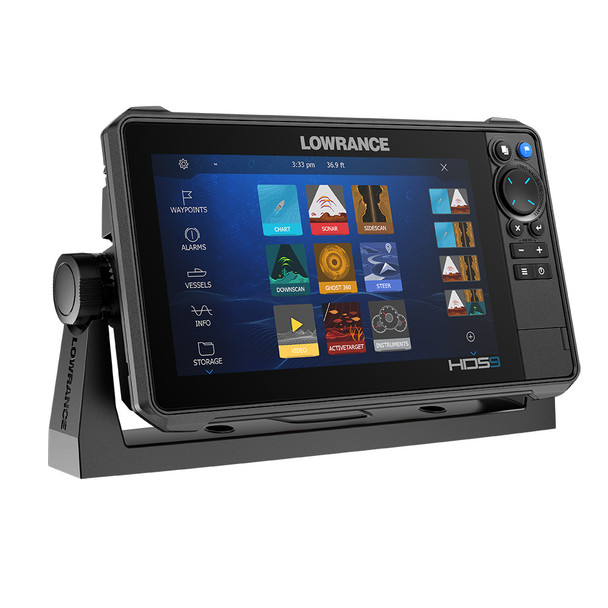

Lowrance HDS PRO 9 Fishfinder and Chartplotter with Preloaded C-MAP DISCOVER OnBoard

HDS PRO 9 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer

See more and catch more with the HDS PRO 9 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (9-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 720


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on


• Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on


• Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on


• Recommended Fuse Rating: 3A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

The Lowrance HDS PRO 9 is a versatile fishfinder and chartplotter designed for serious anglers seeking advanced features. Its 9-inch solarMAX HD touchscreen delivers clear, vivid visuals viewable from extreme angles and through polarized lenses, ensuring easy operation in various lighting conditions. The device comes equipped with preloaded C-MAP DISCOVER OnBoard charts, featuring detailed 1-foot contours on over 19,000 US lakes and 9,400 Canadian lakes, enabling quick navigation and location of prime fishing spots. Real-time mapping through C-MAP Genesis Live further enhances your situational awareness, allowing for custom map creation while on the water. The system supports full networking capabilities, including Bluetooth, WiFi, and Ethernet, facilitating seamless connection to other marine electronics and smartphones for notifications and data sharing. The large, programmable keys combined with touchscreen control of accessories like Power-Pole anchors, Ghost Trolling Motor, and autopilot systems provide intuitive and versatile operation. The HDS PRO 9 is compatible with ActiveTarget 2 Live Sonar for live fish tracking and Active Imaging HD for high-definition structure imaging, helping anglers spot fish and underwater features with exceptional clarity. Additional features include support for ActiveTarget Scout and Ghost Trolling Motor overlay views, NMEA 2000 connectivity, and extensive storage options with microSD slots, making it suitable for integrated and expanded marine systems. Its robust build withstands various environmental conditions, operating efficiently within a temperature range from 5°F to 131°F. Designed for ease of use and advanced functionality, the Lowrance HDS PRO 9 is the ideal choice for anglers looking to elevate their fishing experience with cutting-edge technology and comprehensive mapping tools.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on over 19,000 US lakes and 9,400 Canadian lakes

• SolarMAX HD touchscreen viewable at extreme angles and through polarized lenses

• High-definition Active Imaging HD compatible for detailed underwater structure imaging

• High-resolution ActiveTarget 2 Live Sonar support for real-time fish tracking

• FishReveal with SideScan and Downscan views (requires S3100 module and compatible transducer)

• Real-time mapping with C-MAP Genesis Live for custom map creation

• Support for ActiveTarget Scout and Ghost Trolling Motor 360 overlay views

• Large programmable keys for quick access and control

• Touchscreen integration for Power-Pole anchors, Ghost Trolling Motor, autopilot, and Lowrance Outboard Pilot

• Wireless, Bluetooth 4.0, and Ethernet connectivity for system expansion and notifications
