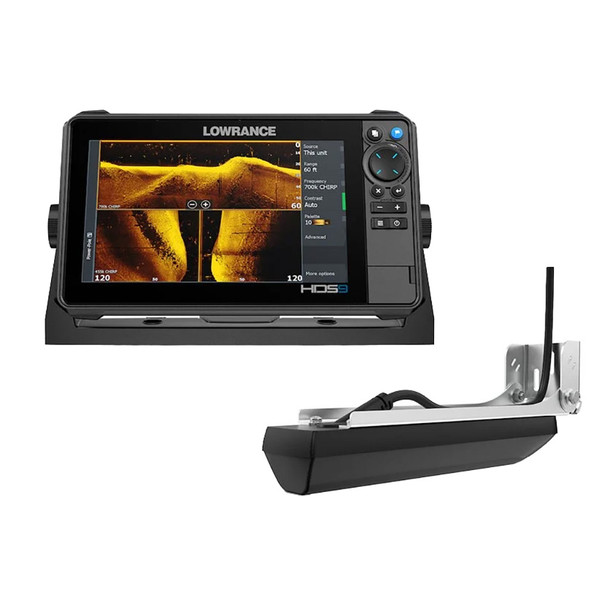

Lowrance HDS PRO 9 Fishfinder with Preloaded C-MAP DISCOVER and Active Imaging HD Transducer

HDS PRO 9 - with Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer

See more and catch more with the HDS PRO 9 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (9-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure


• Lowrance CHIRP with superb clarity and target separation


• FishReveal DownScan view makes fish identification easy


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies


• Smart transducer design boosts signal clarity


• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 720


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on


• Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on


• Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on


• Recommended Fuse Rating: 3A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

The Lowrance HDS PRO 9 provides a comprehensive fishfinding and chartplotting solution designed to enhance your fishing experience. Featuring a 9-inch high-resolution touchscreen display, it offers crisp visuals with a resolution of 1280 x 720 pixels, viewable from extreme angles and through polarized lenses. The device comes preloaded with C-MAP DISCOVER OnBoard charts, including detailed contours for over 19,000 US lakes and 9,400 Canadian lakes, enabling quick identification of prime fishing spots. Its robust connectivity options include Bluetooth 4.0, WiFi, Ethernet ports, and NMEA 2000 support, allowing seamless integration with other onboard systems and real-time notifications. With internal storage of 8GB, users can save numerous waypoints, routes, and trails, making navigation straightforward and organized.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with detailed contours for US and Canadian lakes

• High-definition 9-inch SolarMAX HD touchscreen with wide viewing angles

• Active Imaging HD Transducer delivering ultra-high-definition SideScan, DownScan, and CHIRP sonar imaging

• Support for ActiveTarget 2 Live Sonar to track fish behavior in real time

• FishReveal technology enhances fish and structure identification with SideScan and DownScan views

• NMEA 2000, Bluetooth, WiFi connectivity for system integration and wireless notifications

• Large programmable keys and touchscreen control for boat functions such as autopilot and trolling motor

• Real-time mapping with C-MAP Genesis Live and support for ActiveTarget Scout and Ghost Trolling Motor overlays

• Built-in GPS with 16 channels and 10 Hz update rate for precise navigation

• Expandable storage via microSD cards up to 32GB for additional maps and data
