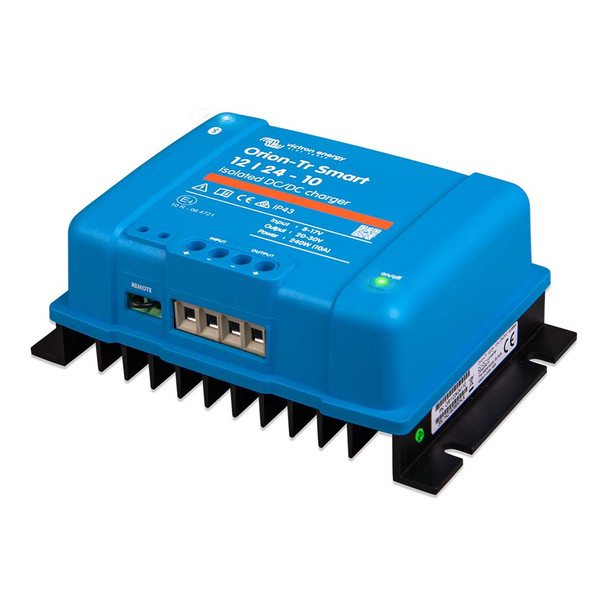

Victron Energy Orion-Tr Smart 12/24-10A (240W) Isolated DC-DC Charger and Power Supply

Orion-TR Smart 12/24-10A (240W) Isolated DC-DC Charger or Power Supply

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart Enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available


• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product

Fully programmable

• Battery charge algorithm (configurable) or fixed output.


• Smart Alternator Compatibility: engine running detection mechanism

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged


• For lithium batteries, the absorption time is fixed; the default is 2 hours


• Alternatively, a fixed output voltage can be chosen

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation. Input fuse (not replaceable)

*Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 8-17 V


• Under Voltage Shut Down: 7 V


• Under Voltage Restart: 7.5 V


• Nominal Output Voltage: 24.2 V


• Output Voltage Adjust Range: 20-30 V


• Output Voltage Tolerance: +/- 0,2 V


• Output Noise: 2 mV rms


• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 10 A


• Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A


• Short Circuit Output Current: 25 A


• Cont. Output Power at 25 Degrees C: 280 W


• Cont. Output Power at 40 Degrees C: 240 W


• Efficiency: 88 %


• No Load Input Current (2): < 100 mA


• Standby Current: Less than 1A


• Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth


• Galvanic Isolation: 200 VDC between input, output, and case


• Operating Temperature Range -20 to +55 C (derate 3 % per C above 40 C)


• Humidity: Max. 95 % non-condensing


• DC Connection: Screw terminals


• Maximum Cable Cross-Section: 16 mm AWG6


• Weight: 1,8 kg (3 lb)


• Dimensions (H x W x D):130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)


• Protection Category IP43 (electronic components), IP22 (connection area)


• Safety Standards: EN 60950


• Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-Tr Smart 12/24-10A (Part Number ORI122424120) is a versatile and efficient isolated DC-DC charger designed for demanding applications such as RVs, boats, and vehicles with Euro 5 or Euro 6 engines. Its wide input voltage range of 8 to 17 volts allows it to handle varying power sources and cable lengths, ensuring reliable charging and power supply even when voltage drops occur. This unit serves both as a DC-DC battery charger and a constant voltage power supply, providing a stable output of 24.2 volts with adjustable voltage settings to suit different battery chemistries and applications. Its intelligent design helps prevent overcharging and discharging, protecting your batteries and ensuring optimal performance of your electrical system.

Equipped with Bluetooth Smart technology, the Orion-Tr can be monitored and configured remotely using the VictronConnect app on any Bluetooth-enabled smartphone or tablet. The app provides real-time data, warnings, and alarms, making system management straightforward and accessible. Fully programmable, this charger features a customizable battery charge algorithm with an adaptive three-stage process—bulk, absorption, and float—optimized for lead-acid and lithium batteries. The absorption time automatically adjusts based on discharge levels, and for lithium batteries, a fixed two-hour absorption period is standard, ensuring thorough recharging without overtaxing your batteries.

Designed for compatibility with vehicles fitted with smart alternators, the Orion-Tr includes engine shutdown detection to prevent battery drain when the engine is off. Its remote on/off feature allows for easy integration with external switches or relays, offering additional control over power management. The unit is short circuit proof and can be paralleled with multiple units to increase current capacity, making it suitable for larger systems. Its high-temperature protection reduces output current at elevated temperatures, safeguarding internal components. The IP43-rated enclosure with screw terminals simplifies installation and ensures durability in various environments while maintaining compliance with safety and emission standards. Overall, the Victron Orion-Tr Smart 12/24-10A offers reliable, flexible, and smart power management tailored for mobile and off-grid applications.

Features:

• Wide input voltage range: 8-17 V to handle fluctuating power sources

• Bluetooth Smart enabled: monitor and configure remotely via VictronConnect app

• Fully programmable: customizable charge algorithm or fixed output voltage

• Adaptive 3-stage charging: bulk, absorption, float with automatic adjustments

• Compatible with Euro 5/6 engines: engine shutdown detection prevents battery drain

• Remote On/Off control: connect external switches or relay contacts

• Parallel capability: connect multiple units to increase output current unlimitedly

• High temperature protection: reduces output power at elevated temperatures

• IP43 protection rating: suitable for various environmental conditions

• Galvanic isolation: 200 VDC between input, output, and case for safety

• Robust screw terminal connections: simple installation without special tools

• Reliable operation: short circuit proof with a maximum output of 15 A (continuous) and 25 A (short circuit)
