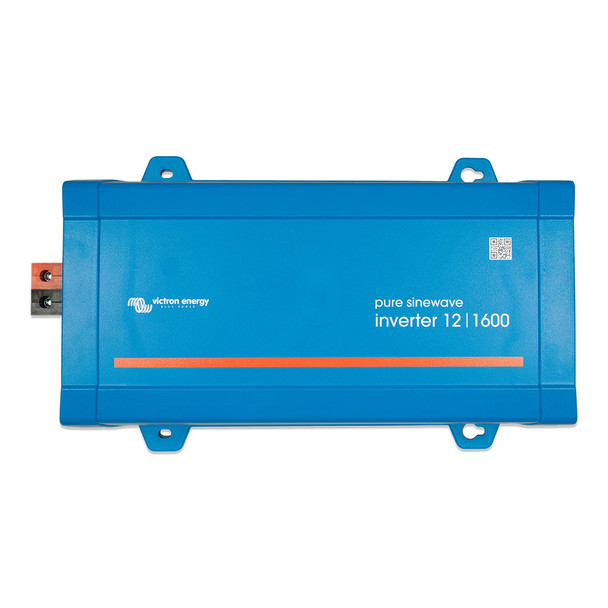

Victron Energy Phoenix Inverter 12/1600 120V VE.Direct NEMA 5-15R

Phoenix Inverter 12/1600 120V VE.Direct NEMA 5-15R

Inverters allow users to power domestic equipment, requiring 230V/120V AC, using leisure or automotive batteries rated at 12V, 24V, or 48V DC.

*This inverter has a GFCI Duplex Outlet.

VE.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBooks, and other devices


• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load-dependent cut-off level


• Output voltage 210 - 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

In and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA


• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W


• Peak Power: 400W


• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%


• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V


• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V


• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff


• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V


• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V


• Max. Efficiency: 87 / 88 / 88%


• Zero-Load Power: 4,2 / 5,2 / 7,9W


• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W


• ECO Mode Stop Start Power Setting: Adjustable


• Protection (2): a - f


• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)


• Battery-Connection: Screw terminals


• Maximum Cable Cross-Section: 10mm / AWG8


• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI


• Protection Category: IP 21


• Weight: 2,4kg / 5.3 lbs


• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes


• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)


• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3


• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/1600 (Part Number: PIN122161500) provides reliable power conversion for a variety of applications, transforming 12V DC from leisure or automotive batteries into 120V AC suitable for domestic equipment. Designed with durability and efficiency in mind, this inverter features a robust steel chassis with a blue RAL 5012 finish, ensuring long-term performance even in demanding environments. It is equipped with a GFCI duplex outlet to meet safety standards and protect connected devices from electrical faults. Its fully configurable settings include low battery voltage alarms, dynamic load-dependent cut-off levels, and adjustable output voltage and frequency, offering flexibility tailored to specific power needs.

Monitoring capabilities are integrated into the inverter, allowing users to track input and output voltage, load percentage, and alarms through the VE.Direct communication port. This port can be connected to a computer via a VE.Direct to USB interface cable or to mobile devices such as smartphones, tablets, or laptops using a VE.Direct Bluetooth Smart dongle. These features enable real-time monitoring and remote management, making this inverter suitable for both stationary and mobile power systems. The inverter’s proven full bridge and toroidal transformer topology ensure high reliability, with protection against short circuits, overheating, overloads, and high ambient temperatures. Its high start-up power is capable of handling demanding loads like LED and halogen lamps or power tools, ensuring consistent operation across various applications.

Additional features include an ECO mode that reduces power consumption by switching to standby during low load conditions (as low as 15W), with an adjustable restart interval to optimize efficiency. A remote on/off switch can be connected for easy operation, while an automatic transfer switch (optional, such as the Filax) allows seamless transfer between power sources with minimal interruption. The inverter's operating temperature range from -40°C to +65°C and fan-assisted cooling system ensure stable operation in diverse environments. Its comprehensive safety standards and protection features, combined with multiple AC outlet options—including Schuko, IEC-320, UK, AU/NZ, and NEMA 5-15R with GFCI—make this inverter a versatile and dependable choice for off-grid, mobile, and backup power solutions.

Measuring approximately 3.4 inches high, 6.5 inches wide, and 10.2 inches deep, and weighing about 5.3 pounds, the Victron Energy Phoenix 12/1600 is designed for easy installation and integration into existing systems. Whether used in RVs, boats, or off-grid setups, this inverter delivers stable, efficient power conversion with advanced features for customization and remote management, backed by industry standards for safety and electromagnetic compatibility.

Features:

• GFCI duplex outlet for safety and convenience

• VE.Direct communication port for monitoring and configuration

• Fully configurable low battery alarms, voltage cut-off, and output settings

• High reliability with proven full bridge and toroidal transformer topology

• Protection against short circuits, overheating, overloads, and high ambient temperatures

• High start-up power suitable for demanding loads

• ECO mode for energy efficiency with adjustable standby and restart intervals

• Remote on/off switch compatibility for easy operation

• Automatic transfer switch compatibility for seamless power source switching

• Multiple international AC outlet options including Schuko, IEC-320, UK, AU/NZ, and NEMA 5-15R GFCI

• Operates in a wide temperature range from -40°C to +65°C with fan-assisted cooling

• Compact design with lightweight construction for versatile installation
