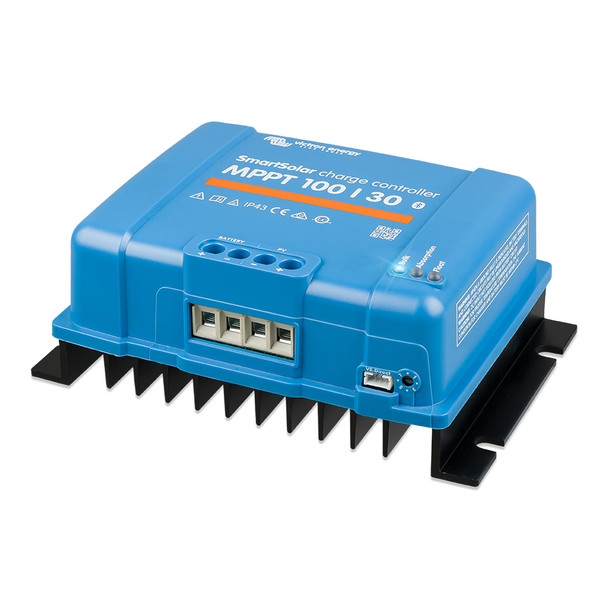

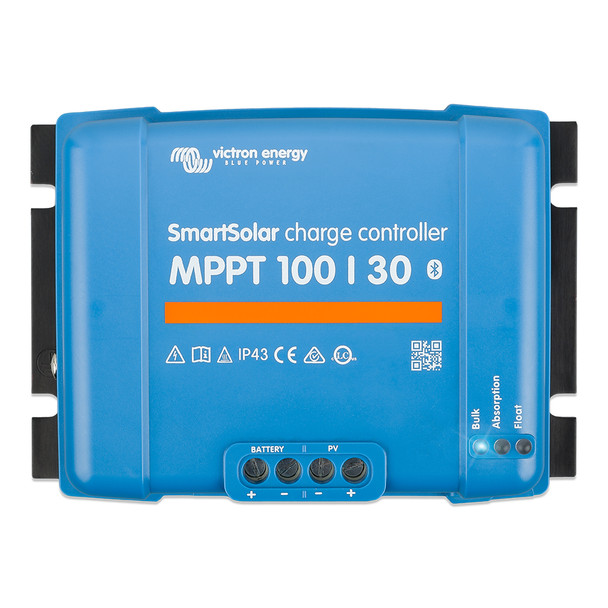

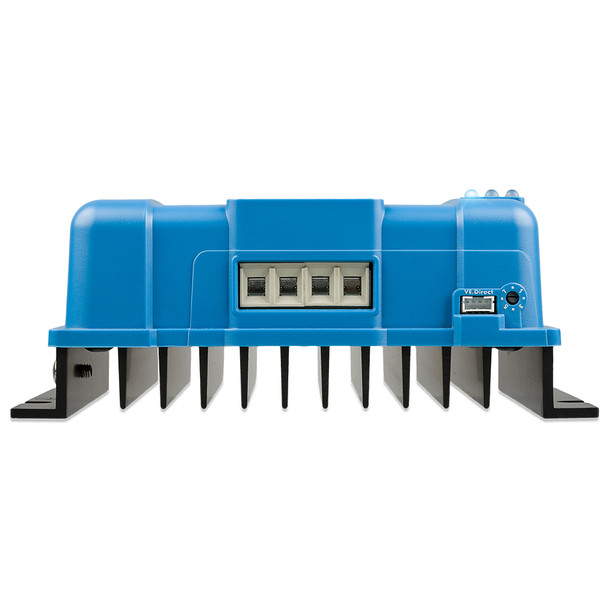

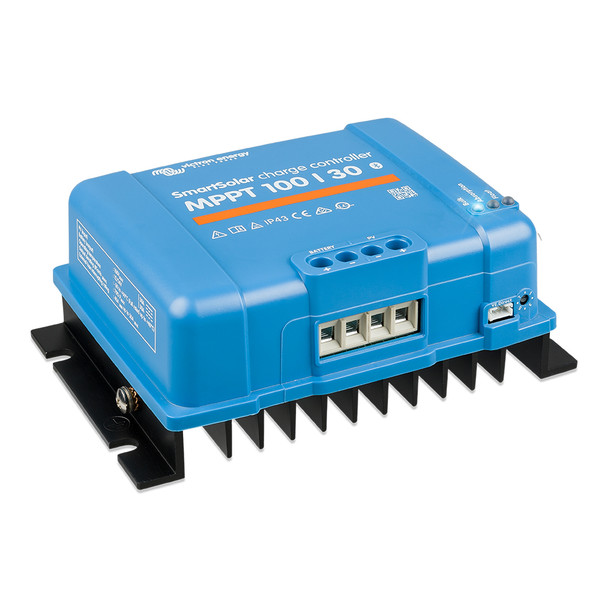

Victron Energy SmartSolar MPPT Charge Controller - 100V - 30AMP with Bluetooth and VE.Direct

SmartSolar MPPT Charge Controller - 100V - 30AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller model SCC110030210 is a high-performance solar charge management device designed for reliable and efficient energy harvesting. Featuring built-in Bluetooth connectivity, it allows seamless wireless setup, monitoring, and firmware updates via a smartphone or tablet, providing convenience and real-time insights into your solar system's performance. The controller also includes VE.Direct communication for wired connections to other Victron GX products, PCs, or compatible devices, ensuring versatile integration within your energy management system.
Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm maximizes energy extraction, especially under variable light conditions such as cloud cover. This technology can improve energy harvest by up to 30% compared to traditional PWM controllers and by up to 10% over slower MPPT models, translating to more power for your batteries and loads. The load output feature helps prevent battery over-discharge by disconnecting loads when the battery voltage drops to a pre-set level, with options for intelligent management including a relay interface for 48V systems. This ensures prolonged battery lifespan and system stability.
The controller employs an intelligent battery management system called Battery Life, which carefully monitors the state of charge to avoid damaging deep cycling. When the battery cannot be fully recharged within a day, the system adjusts the load disconnect level gradually, promoting nearly full recharge regularly and extending battery life. The programmable charge algorithm and day/night lighting control features offer customization to suit various applications. An internal temperature sensor automatically compensates absorption and float charge voltages for optimal battery health, while optional external sensors via Bluetooth enable remote monitoring of voltage and temperature for advanced battery management. This robust and feature-rich controller is suitable for a wide range of solar setups, ensuring efficient energy conversion, battery longevity, and system integration.
For more details on warranty and safety information, please visit the provided links. Please consult your dealer for support, repairs, or returns related to this product. This device complies with UL safety standards and is designed for reliable operation in demanding environments, making it an ideal choice for off-grid and renewable energy applications.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct interface for wired communication with GX products and PCs

• Ultra-fast MPPT technology increases energy harvest by up to 30%

• Load output to prevent over-discharge, with short circuit proof design

• Intelligent Battery Life management to extend battery lifespan

• Programmable charge algorithm for customized charging profiles

• Day/night timing and light dimming options for flexible control

• Internal temperature sensor for voltage compensation

• Optional external Bluetooth sensors for battery voltage and temperature monitoring
