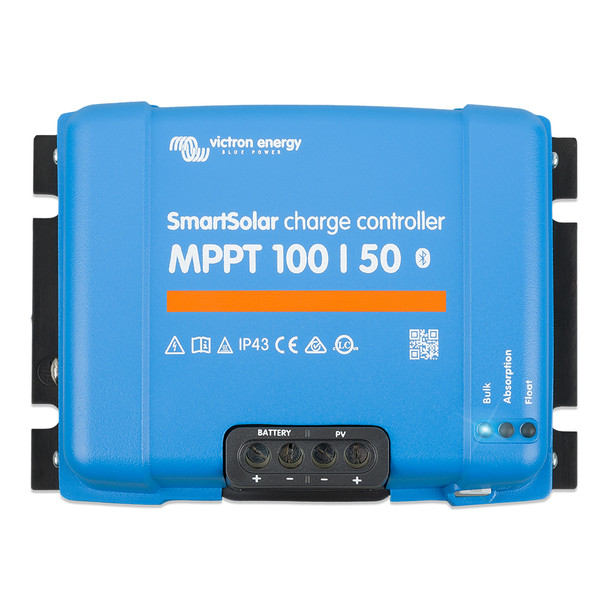

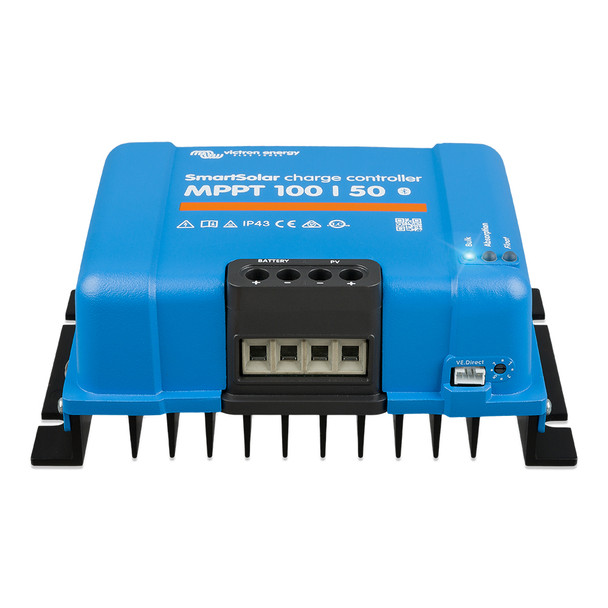

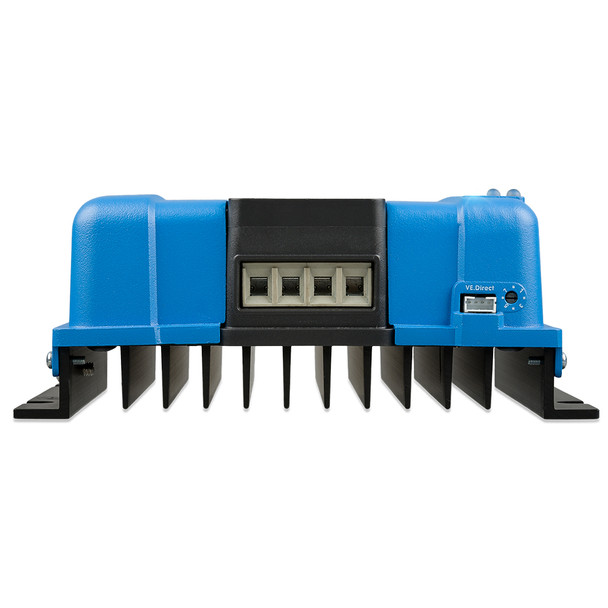

Victron Energy SmartSolar MPPT Charge Controller 100V 50AMP with Bluetooth

SmartSolar MPPT Charge Controller - 100V - 50AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller model SCC110050210 is a high-performance device designed for efficient solar energy management. With a maximum voltage of 100V and a current capacity of 50 amps, this controller offers advanced features to optimize your solar power system. Its built-in Bluetooth Smart technology allows for seamless wireless setup, monitoring, updates, and synchronization via compatible mobile devices, providing convenience and real-time insights into system performance. Additionally, VE.Direct connectivity enables wired data communication with devices such as the Color Control GX, other GX series products, or a PC for comprehensive system integration.
Equipped with ultra-fast Maximum Power Point Tracking (MPPT), this controller maximizes energy harvest, especially under variable weather conditions where sunlight fluctuates. Compared to traditional PWM controllers, it improves energy collection by up to 30%, and surpasses slower MPPT units by approximately 10%, translating to increased efficiency and higher energy yields. The load output feature prevents battery over-discharge by disconnecting loads when the battery reaches a predefined voltage, ensuring longevity and safety. This output is short-circuit proof, offering added reliability.
The intelligent Battery Life algorithm continuously monitors the state of charge, adjusting load disconnect levels as needed to ensure the battery is fully recharged at least once a week. This prevents the common cycle of partial charges that can damage lead-acid batteries over time. The controller also supports programmable battery charging algorithms, enabling customization based on specific system requirements. Additional options include day/night timing and light dimming, controlled via the software suite available on the Victron Energy website.
An internal temperature sensor compensates absorption and float charge voltages for temperature variations, maintaining optimal charging conditions. For enhanced monitoring, an external Bluetooth-enabled Battery Sense or BMV-712 Smart Battery Monitor can relay battery voltage and temperature data to multiple SmartSolar controllers, ensuring comprehensive system oversight. This controller is UL approved and designed for durability and efficiency in a variety of solar applications.
For warranty details and safety information, please refer to the official Victron Energy documentation. Note that this product may contain chemicals known to cause reproductive harm in California, and proper handling and disposal are advised.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection with compatible devices

• Ultra-fast MPPT for improved energy harvest, especially in fluctuating sunlight conditions

• Load output to prevent battery over-discharge, with short circuit proof design

• Intelligent Battery Life management to maximize battery lifespan

• Programmable battery charge algorithms for customized charging

• Day/night timing and light dimming options via software

• Internal temperature sensor for voltage compensation

• Optional external Bluetooth sensing for battery voltage and temperature monitoring
