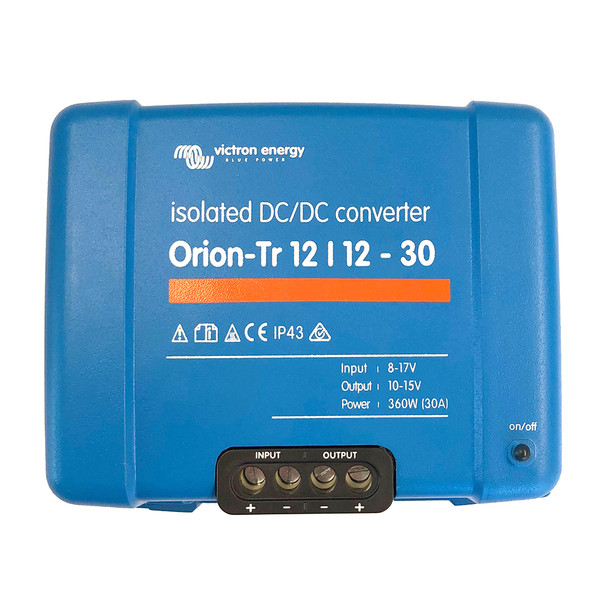

Orion-TR 12/12-30A (360W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 10-17 V


• Under Voltage Shut Down: 7 V


• Under Voltage Restart: 7.5 V


• Nominal Output Voltage: 12.2 V


• Output Voltage Adjust Range: 10-15 V


• Output Voltage Tolerance: +/- 0,2 V


• Output Noise: 2 mV rms


• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A


• Maximum output current (10 s) at nominal output voltage minus 20%: 40 A


• Short Circuit Output Current: 60 A


• Cont. Output Power at 25 Degrees C: 430 W


• Cont. Output Power at 40 Degrees C: 360 W


• Efficiency: 87 %


• No Load Input Current (2): < 80 mA


• Current Consumption: < 200uA when disabled via its remote port


• Galvanic Isolation: 200 VDC between input, output, and case


• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)


• Humidity: Max. 95 % non-condensing


• DC Connection: Screw terminals


• Maximum Cable Cross-Section: 16 mm AWG6


• Weight: 1.8 kg (4 lb)


• Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)


• Safety Standards: EN 60950


• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Orion-TR 12/12-30A (Part Number ORI121240110) is a reliable isolated DC-DC converter designed for demanding electrical systems. With a compact footprint and robust construction, this converter provides a continuous output of 30 amps at 12 volts, delivering up to 360 watts of power. Its galvanic isolation of 200 VDC ensures safety and noise reduction across input and output connections. This model features a remote on/off terminal, allowing for easy control via low-current switches or engine run/stop systems, eliminating the need for high-current switching components.
Built for versatility, the Orion-TR can be paralleled with an unlimited number of units to increase total output current, making it suitable for complex power setups. All models are short circuit proof, ensuring durability and safety in various applications. The converter is protected against high temperatures by reducing output current when ambient temperatures exceed 40°C, maintaining operational integrity under harsh conditions. Its IP43-rated enclosure, when installed with screw terminals downward, provides protection against dust and limited water exposure.
The converter features screw terminals for straightforward installation without special tools, and an input fuse (not replaceable) is included for 12 V and 24 V models. The adjustable output voltage ranges from 10 V to 15 V, offering flexibility for different system requirements, though it’s not intended for battery charging—consider the Orion-Tr Smart series for that purpose. Designed to operate reliably from -20°C to +55°C, the Orion-TR maintains high efficiency of 87%, minimizing energy loss. Its low no-load input current and minimal current consumption when disabled add to its energy-saving profile. Compliant with safety standards EN 60950 and immunity standards EN 61000-6-2, EN 61000-6-1, and EN 55014-2, this converter is suitable for a variety of industrial and automotive applications.
For detailed installation instructions, refer to the owner’s manual available online. Please note that this product may contain chemicals known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov. Contact your dealer for support, returns, or repairs related to this product.
