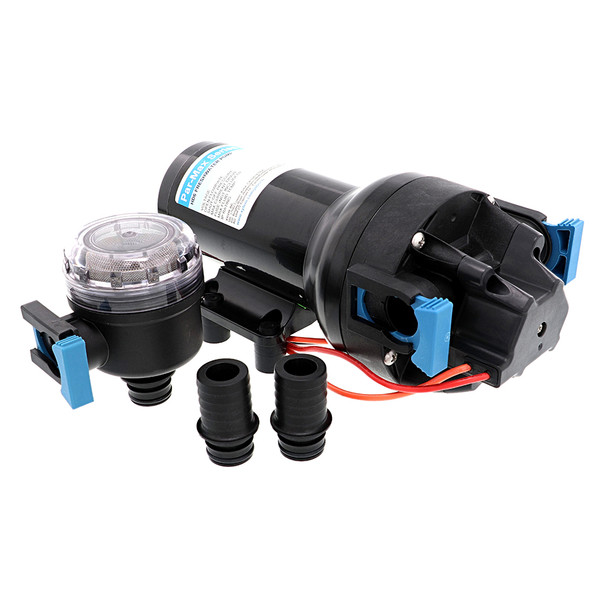

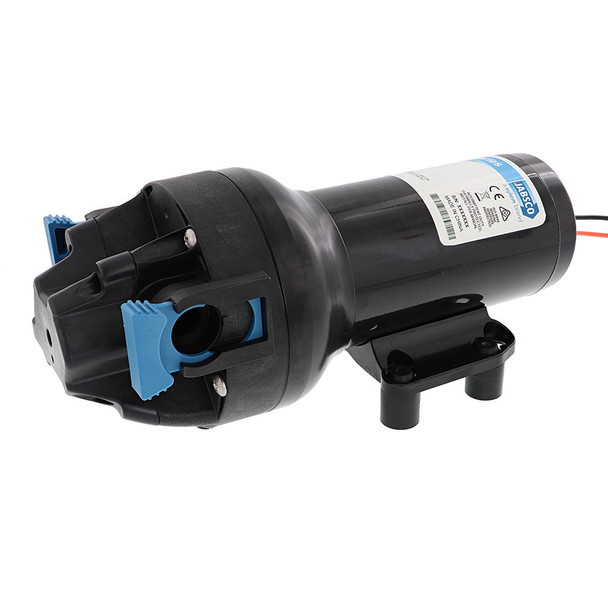

Jabsco Par-Max HD6 Heavy Duty 12V Water Pressure Pump – 6 GPM, 40 PSI

Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump is engineered for demanding applications requiring reliable and consistent water flow. Designed with a wider diameter motor and a durable powder-coated shell, this pump offers enhanced pressure capability and longevity. It features a cast aluminum endbell and lower housing, allowing for efficient operation at pressures up to 40 PSI and flow rates of 6 GPM (23 LPM). Whether used on boats, RVs, or industrial setups, the HD6 model provides robust performance suitable for high-demand environments. Its heavy-duty construction ensures durability, even in continuous operation, and the integrated sealed pressure switch enables on-demand activation, improving efficiency and conserving power. The self-priming capability of the pump allows flexible installation options, while the ability to run dry without damage adds to its versatility. Quick connect ports facilitate easy installation, servicing, and maintenance, and vibration dampening mounting feet reduce noise and vibration during operation. An integrated bypass module ensures smoother flow and reduces cycling, enhancing overall system performance. The pump features a glass fiber reinforced polypropylene pump head, co-molded TPV diaphragm, and EPDM check valves, ensuring chemical resistance and durability. Certified by CE, ISO8846, and RCM, the Jabsco Par-Max HD6 meets rigorous safety standards and boasts an ingress protection rating of IPX6, suitable for various demanding environments. This pump is ideal for applications needing a reliable, long-lasting water supply solution with minimal maintenance requirements. Its efficient, quiet operation combined with high-pressure performance makes it a versatile choice for marine, RV, and industrial water systems, providing consistent water flow in a compact, robust package.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for high-pressure performance

• Efficient and quiet operation

• Integrated sealed pressure switch for on-demand operation

• Self-priming capability for versatile installation

• Can run dry without damage

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet to reduce noise

• Integrated bypass module for smoother flow and reduced cycling
